Protecting the Internet

Author:	Lloyd Kvam, Venix Corp
Date:	2007-02-13

Contents

Outline
Presenter
- Lloyd Kvam
- President, Venix Corp
Motivation
IPTables Background
Configuring iptables
Using IP Tables
Bridging Background
Wrt54gl diagram
Sample Bridge (from wrt54gl)
EB Tables Background
ebtables summary
Protection Strategy
My protective ebtables config
openwrt
wrt54GL notes
wrt54GL features
configuring openwrt

Outline

motivation

needed to isolate a compromised Windows web server while allowing it to continue to function as a web server.

that is, filter out the bad packets while allowing the good packets

do this without changing the network configuration or the router

iptables

what it does (state-full packet inspection)

how it is configured

how this provides a firewall (accept, reject, drop)

explicitly configured in network - (visible)

operates in a specific host or in a router

bridging

connecting networks at the LAN (ethernet) level

ethernet switches are bridges

forwards ethernet frames between segments

ebtables

what it does (inspects ethernet frames)

also understands ip information in frames

how it is configured

also provides accept, drop

implicitly configured in network - (invisible)

copies frames between network segments

openwrt

linux for routers

installing and configuring

(rules of engagement - not like normal linux configuration)

linksys wrt54gl

specifics of openwrt for inexpensive linux device

Presenter

Lloyd Kvam

President, Venix Corp

Venix provides technical services

Software Development

System Administration

Network Planning, Administration and Configuration

Security Assistance

Motivation

ISP notified friends who have a Windows server that it had been compromised. The server was directly attached to the Internet router provided by the ISP. Subsequent investigation showed they had been hit by a zero-day worm. The signature update was not released until almost a week after they had been hit.

The ISP was not prepared to block ports on the local router. My friends were desperate to keep their server on-line. They had no alternative computer ready to deploy . They did have a Linksys WRT54GL purchased for home use.

I volunteered to configure the WRT54GL to block all malicious traffic.

How hard could it be?

IPTables Background

http://iptables-tutorial.frozentux.net/iptables-tutorial.html

Provides state-full packet inspection

Configured to accept, reject, drop packets

Organized into Tables based on packet processing stage

raw mangle nat filter

Chains of rules in each table

Firewall uses filter table and INPUT nad FORWARD chains

Configuring iptables

iptables --list --verbose

My laptop iptables

iptables --list --verbose:

Chain INPUT (policy ACCEPT 0 packets, 0 bytes)
 pkts bytes target     prot opt in     out     source               destination
4736K  298M RH-Firewall-1-INPUT  all  --  any    any     anywhere             anywhere
-
Chain FORWARD (policy ACCEPT 0 packets, 0 bytes)
 pkts bytes target     prot opt in     out     source               destination
    0     0 RH-Firewall-1-INPUT  all  --  any    any     anywhere             anywhere
-
Chain OUTPUT (policy ACCEPT 9371K packets, 14G bytes)
 pkts bytes target     prot opt in     out     source               destination
-
Chain RH-Firewall-1-INPUT (2 references)
 pkts bytes target     prot opt in     out     source               destination
44603   12M ACCEPT     all  --  lo     any     anywhere             anywhere
4685K  282M ACCEPT     all  --  any    any     192.168.0.0/24       anywhere
    7   728 ACCEPT     icmp --  any    any     anywhere             anywhere            icmp any
    0     0 ACCEPT     esp  --  any    any     anywhere             anywhere
    0     0 ACCEPT     ah   --  any    any     anywhere             anywhere
   52 20225 ACCEPT     udp  --  any    any     anywhere             224.0.0.251         udp dpt:mdns
    0     0 ACCEPT     udp  --  any    any     anywhere             anywhere            udp dpt:ipp
    0     0 ACCEPT     udp  --  any    any     anywhere             anywhere            udp dpt:tftp
 6158 4847K ACCEPT     all  --  any    any     anywhere             anywhere            state RELATED,ESTABLISHED
    0     0 ACCEPT     tcp  --  any    any     anywhere             anywhere            state NEW tcp dpt:ssh
    0     0 ACCEPT     tcp  --  any    any     anywhere             anywhere            state NEW tcp dpt:http
    0     0 ACCEPT     tcp  --  any    any     anywhere             anywhere            tcp dpts:6881:iatp-normalpri flags:SYN,RST,ACK/SYN
   95 24690 REJECT     all  --  any    any     anywhere             anywhere            reject-with icmp-host-prohibited

iptables [-t table] -[AD] chain rule-specification [options]

-A is append rule -D is delete rule (either the matching rule or by number (1,2,...) -P is policy when no rule matches filter is the default table chains INPUT, FORWARD, OUTPUT firewall rules usually go in the INPUT and FORWARD chains Do this by specifying firewall chain as target in bot

iptables-save

writes current rules to stdout

/etc/sysconfig/iptables

default source of rules in fedora core 6 distribution I edit file to add comments and save changes service iptables restart

Using IP Tables

operates in router or host
host and router are visible on network

must be configured into the network. You can not simply add an additional router to a network without changing configurations

Bridging Background

connects networks at the LAN (ethernet) level
ethernet switches are bridges
copies frames between ports
bridge is invisible to TCP/IP
smart -- only copies to destination port
addressing based on MAC address
ports can be grouped as a unit (VLAN)

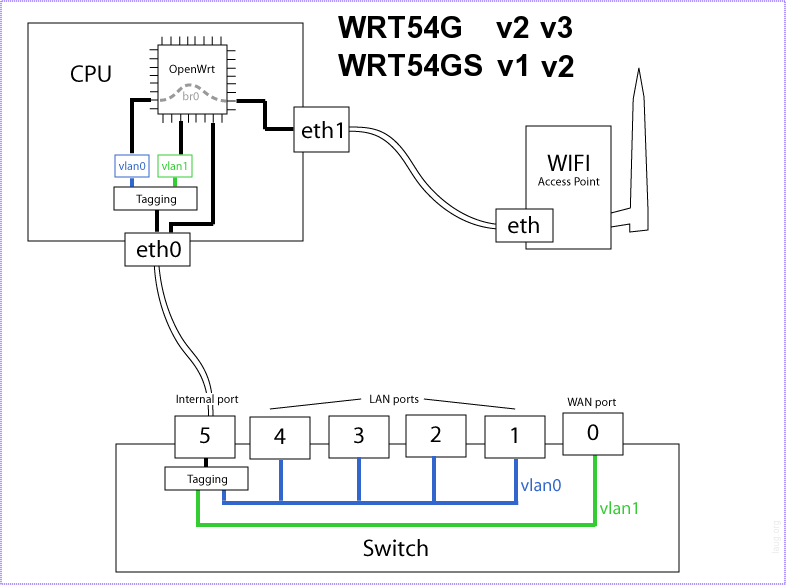

Wrt54gl diagram

Sample Bridge (from wrt54gl)

bridge-utils package provides bridging support
brctl is command for configuring a Linux bridge
(ethernet ports must already be configured)
brctl addbr br0
brctl addif br0 vlan0
brctl addif br0 eth1

root@OpenWrt:/etc# brctl show:

bridge name     bridge id               STP enabled     interfaces
br0             8000.001217122699       yes             vlan0
                                                        eth1

STP is Spanning Tree Protocol
normal ethernet rules require network tree structure
nodes on a tree have unique paths
prevents creation of duplicated frames
STP detects extra paths and disables those ports

EB Tables Background

http://freshmeat.net/articles/view/1433/

provides tables and chains of rules for processing LAN frames
borrows nomenclature from iptables
understands ip header information

ebtables summary

inspects ethernet frames
also understands tcp/ip information in frames
also provides accept, drop
implicitly configured in network - (invisible)
copies frames between network segments

Protection Strategy

Use ebtables to avoid network config changes
Break vlan0 into two vlans with ebtables to filter frames
Save this on the WRT54GL so that it would reboot in filtering mode

My protective ebtables config

ebtables --list
Bridge table: filter

Bridge chain: INPUT, entries: 0, policy: ACCEPT

Bridge chain: FORWARD, entries: 23, policy: ACCEPT
-p ARP -j ACCEPT
-p IPv4 -s 0:aa:aa:aa:aa:aa -i vlan2 --ip-proto tcp --ip-dport 80 -j ACCEPT
-p IPv4 -s 0:aa:aa:aa:aa:aa -i vlan2 --ip-proto udp --ip-dport 53 -j ACCEPT
-p IPv4 -s 0:bb:bb:bb:bb:bb -i vlan2 --ip-proto tcp --ip-dport 80 -j ACCEPT
-p IPv4 -s 0:bb:bb:bb:bb:bb -i vlan2 --ip-proto udp --ip-dport 53 -j ACCEPT
#
-p IPv4 -d 0:aa:aa:aa:aa:aa -i vlan0 --ip-proto tcp --ip-sport 80 -j ACCEPT
-p IPv4 -d 0:aa:aa:aa:aa:aa -i vlan0 --ip-proto udp --ip-sport 53 -j ACCEPT
-p IPv4 -d 0:bb:bb:bb:bb:bb -i vlan0 --ip-proto tcp --ip-sport 80 -j ACCEPT
-p IPv4 -d 0:bb:bb:bb:bb:bb -i vlan0 --ip-proto udp --ip-sport 53 -j ACCEPT
-s 0:aa:aa:aa:aa:aa -i vlan2 -j DROP
-s 0:bb:bb:bb:bb:bb -i vlan2 -j DROP
-d 0:bb:bb:bb:bb:bb -i vlan0 -j DROP
-d 0:aa:aa:aa:aa:aa -i vlan0 -j DROP

Bridge chain: OUTPUT, entries: 0, policy: ACCEPT

openwrt

http://openwrt.org/

http://wiki.openwrt.org/
Excellent documentation
primary source for this presentation

basic web interface
package management (ipkg)
squashfs preserves originals (training wheels)

wrt54GL notes

(Original LAN address is 192.168.1.1)
(my demo router is at 192.168.0.55)
(default credentials: admin, admin)
flashed openwrt (white russian) squashfs
installed ebtables

wrt54GL features

used ipkg to install ebtables. ebtables kernel modules not loaded automatically. I had to update boot scripts
configure many aspects through nvram variables
nvram command help omits commit
nvram commit saves changes for future reboots
standard system files are symbolic links to squashfs in /rom

configuring openwrt

web interface supports general configuration parameters
commandline interface needed for flexibility
use of nvram variables simplifies configuration changes
great platform for ad hoc network appliance

What I did to block all other traffic

This is not guaranteed complete, but should be close:

nvram set vlan2ports="3 4 5"
nvram set vlan0ports="1 2 5*"
nvram set vlan2hwname=et0
#
# vlan0 was started by ifup lan
# so I created an interface named man
# (simply stepping down alphabet)
nvram set man_ifname=vlan2
nvram set man_proto=static

# added man to /etc/init.d/S40network
      ifup wan
+     ifup man
      ifup wifi

# the ebtables modules were not loaded (insmod) by default
#
# added them to /etc/modules.d/40-ipt-nat-extra
# (Perhaps I should have created a nerw file)
# cat 40-ipt-nat-extra
ebtables
ebt_802_3
ebt_among
ebt_arp
ebt_arpreply
ebt_dnat
ebt_ip
ebt_limit
ebt_log
ebt_mark
ebt_mark_m
ebt_pkttype
ebt_redirect
ebt_snat
ebt_stp
ebt_ulog
ebt_vlan
ebtable_broute
ebtable_filter
ebtable_nat
ip_conntrack_amanda
ip_conntrack_proto_gre
ip_nat_proto_gre
ip_conntrack_pptp
ip_nat_pptp
ip_nat_snmp_basic
ip_conntrack_tftp
ip_nat_tftp
ip_conntrack_h323
ip_nat_h323
ip_conntrack_rtsp
ip_nat_rtsp

added ebtables filter rules (shown above) to /etc/firewall.user

# DO NOT FORGET
nvram commit

basic network configuration NVRAM variables:

NVRAM           Description
<name>_ifname   The name of the linux interface the settings apply to
<name>_ifnames  Devices to be added to the bridge (only if the above is a bridge)
<name>_proto    The protocol which will be used to configure an IP
                static: Manual configuration (see below)
                dhcp: Perform a DHCP request
                pppoe: Create a ppp tunnel
<name>_ipaddr   ip address (x.x.x.x)
<name>_netmask  netmask (x.x.x.x)
<name>_gateway  Default Gateway (x.x.x.x)
<name>_dns      DNS server (x.x.x.x)
<name>_hostname hostname requested with dhcp
<name>_hwaddr   MAC address (aa:bb:cc:dd:ee:ff)
                if you want to use a different MAC from the ROM

The command ifup <name> will configure the interface defined by
<name>_ifname according to the above variables.

The only <name> with any significance is wan, used by the
/etc/init.d/S45firewall script.  The firewall script will NAT traffic
through the wan_ifname, blocking connections to wan_ifname.
